Is it mandatory to have the “id” property in Bean/ApplicationContext Xml


Typical Bean Configuration XML file is given below.

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.2.xsd" >

<bean class="com.malliktalksjava.service.EmployeeService">
    <property name="empRepository" ref="employeeDAO"/>
</bean>

<bean id="employeeDAO" class="com.malliktalksjava.dao.EmployeeDao"/>

</beans>

From the above config, EmployeeService Bean is Anonymous because no id is supplied explicitly. Hence, Spring Container generates a unique id for that bean. It uses the fully qualified class name and appends a number to it.

However, if you want to refer that bean by name, through the use of the ref element you must provide a name.

Right way of doing is shown using second Bean, its been declared with employeeDAO id attribute in order to be referenced by the empRepository property of the first Bean.

Spring Core – Hello World Example


Pre Requisite :

Download and install the Spring STS into your machine. This will provide all the default spring configurations whenever you create the project

Application Creation Steps:

Step 1: Spring Maven project in your STS. This gives the project folder structure and one pom.xml file in root folder. Below is the Sample pom Xml.

<project xmlns=”http://maven.apache.org/POM/4.0.0&#8243; xmlns:xsi=”http://www.w3.org/2001/XMLSchema-instance&#8221; xsi:schemaLocation=”http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd”&gt;
<modelVersion>4.0.0</modelVersion>
<groupId>org.springframework.samples</groupId>
<artifactId>Spring-Project</artifactId>
<version>0.0.1-SNAPSHOT</version>

<properties>

<!– Generic properties –>
<java.version>1.6</java.version>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>

<!– Spring –>
<spring-framework.version>3.2.3.RELEASE</spring-framework.version>

<!– Hibernate / JPA –>
<hibernate.version>4.2.1.Final</hibernate.version>

<!– Logging –>
<logback.version>1.0.13</logback.version>
<slf4j.version>1.7.5</slf4j.version>

<!– Test –>
<junit.version>4.11</junit.version>

</properties>

<dependencies>
<!– Spring and Transactions –>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-context</artifactId>
<version>${spring-framework.version}</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-tx</artifactId>
<version>${spring-framework.version}</version>
</dependency>

<!– Logging with SLF4J & LogBack –>
<dependency>
<groupId>org.slf4j</groupId>
<artifactId>slf4j-api</artifactId>
<version>${slf4j.version}</version>
<scope>compile</scope>
</dependency>
<dependency>
<groupId>ch.qos.logback</groupId>
<artifactId>logback-classic</artifactId>
<version>${logback.version}</version>
<scope>runtime</scope>
</dependency>

<!– Hibernate –>
<dependency>
<groupId>org.hibernate</groupId>
<artifactId>hibernate-entitymanager</artifactId>
<version>${hibernate.version}</version>
</dependency>
<!– Test Artifacts –>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-test</artifactId>
<version>${spring-framework.version}</version>
<scope>test</scope>
</dependency>
<dependency>
<groupId>junit</groupId>
<artifactId>junit</artifactId>
<version>${junit.version}</version>
<scope>test</scope>
</dependency>

</dependencies>
</project>

Step 2: Create the bean class HelloWorldBean.java as below

package in.malliktalksjava.spring.examples;

public class HelloWorldBean {

private String message;

public void setMessage(String message){
this.message = message;
}

public void printMessage(){
System.out.println(“You are in Print Message : “+message);
}
}

Step 3: Create Beans Xml file and configure the HellowWorldBean into that file to make use of dependency injection.

<?xml version=”1.0″ encoding=”UTF-8″?>
<beans xmlns=”http://www.springframework.org/schema/beans&#8221;
xmlns:xsi=”http://www.w3.org/2001/XMLSchema-instance&#8221;
xsi:schemaLocation=”http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.2.xsd”&gt;
<bean id=”helloWorldBean” class=”in.malliktalksjava.spring.examples.HelloWorldBean”>
<property name=”message” value=”Hello World”></property>
</bean>

</beans>

Step 4: Create the Main Application class SpringCoreBeansXmlExample.java and load the beans xml

package in.malliktalksjava.spring.examples;

import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;

/**
* @author mallikarjungunda
*
*/
public class SpringCoreBeansXmlExample {

/**
* @param args
*/
public static void main(String[] args) {

//Load the beans.xml into Application Context
ApplicationContext context = new ClassPathXmlApplicationContext(“beans.xml”);

//Inject the object whenever required
HelloWorldBean helloWorldBean = (HelloWorldBean)context.getBean(“helloWorldBean”);

helloWorldBean.printMessage();
}
}

Below is the out put that prints whenever you run the class.

You are in Print Message : Hello World



Thank you for going through the this example. Refer to Menu bar for other tutorials.

org.springframework.beans.NotReadablePropertyException: Invalid property


NotReadablePropertyException: Invalid property Exception

ERROR: org.springframework.web.servlet.tags.form.RadioButtonTag - Invalid property 'newUser' of bean class [com.malliktalksjava.bean.UserBean]: Bean property 'newUser' is not readable or has an invalid getter method: Does the return type of the getter match the parameter type of the setter?
org.springframework.beans.NotReadablePropertyException: Invalid property 'newUser' of bean class [com.malliktalksjava.bean.UserBean]: Bean property 'newUser' is not readable or has an invalid getter method: Does the return type of the getter match the parameter type of the setter?
at org.springframework.beans.BeanWrapperImpl.getPropertyValue(BeanWrapperImpl.java:725)
at org.springframework.beans.BeanWrapperImpl.getPropertyValue(BeanWrapperImpl.java:716)
at org.springframework.validation.AbstractPropertyBindingResult.getActualFieldValue(AbstractPropertyBindingResult.java:99)
at org.springframework.validation.AbstractBindingResult.getFieldValue(AbstractBindingResult.java:229)
at org.springframework.web.servlet.support.BindStatus.<init>(BindStatus.java:120)
at org.springframework.web.servlet.tags.form.AbstractDataBoundFormElementTag.getBindStatus(AbstractDataBoundFormElementTag.java:168)
at org.springframework.web.servlet.tags.form.AbstractDataBoundFormElementTag.getPropertyPath(AbstractDataBoundFormElementTag.java:188)
at org.springframework.web.servlet.tags.form.AbstractDataBoundFormElementTag.getName(AbstractDataBoundFormElementTag.java:154)
at org.springframework.web.servlet.tags.form.AbstractDataBoundFormElementTag.autogenerateId(AbstractDataBoundFormElementTag.java:141)
at org.springframework.web.servlet.tags.form.AbstractCheckedElementTag.autogenerateId(AbstractCheckedElementTag.java:81)

Solution:

  • Ensure all the properties configured in the form are available in the FormBean object.
  • In the above case, radio button property have not been configured in the UserBean class.

Features of Spring Web MVC


Spring’s web module includes many unique web support features:

  • Clear separation of roles. Each role — controller, validator, command object, form object, model object, DispatcherServlet, handler mapping, view resolver, and so on — can be fulfilled by a specialized object.
  • Powerful and straightforward configuration of both framework and application classes as JavaBeans. This configuration capability includes easy referencing across contexts, such as from web controllers to business objects and validators.
  • Adaptability, non-intrusiveness, and flexibility. Define any controller method signature you need, possibly using one of the parameter annotations (such as @RequestParam, @RequestHeader, @PathVariable, and more) for a given scenario.
  • Reusable business code, no need for duplication. Use existing business objects as command or form objects instead of mirroring them to extend a particular framework base class.
  • Customizable binding and validation. Type mismatches as application-level validation errors that keep the offending value, localized date and number binding, and so on instead of String-only form objects with manual parsing and conversion to business objects.
  • Customizable handler mapping and view resolution. Handler mapping and view resolution strategies range from simple URL-based configuration, to sophisticated, purpose-built resolution strategies. Spring is more flexible than web MVC frameworks that mandate a particular technique.
  • Flexible model transfer. Model transfer with a name/value Map supports easy integration with any view technology. Customizable locale, time zone and theme resolution, support for JSPs with or without Spring tag library, support for JSTL, support for Velocity without the need for extra bridges, and so on.
  • A simple yet powerful JSP tag library known as the Spring tag library that provides support for features such as data binding and themes. The custom tags allow for maximum flexibility in terms of markup code. For information on the tag library descriptor, see the appendix entitled Chapter 36, spring.tld
  • A JSP form tag library, introduced in Spring 2.0, that makes writing forms in JSP pages much easier.
  • Beans whose lifecycle is scoped to the current HTTP request or HTTP Session. This is not a specific feature of Spring MVC itself, but rather of the WebApplicationContext container(s) that Spring MVC uses. These bean scopes are described in the section called “Request, session, and global session scopes”

Source:

http://docs.spring.io/spring/docs/current/spring-framework-reference/pdf/spring-framework-reference.pdf

javax.servlet.ServletException: Could not resolve view with name ‘home’ in servlet with name ‘springDispatcher’


ServletException: Could not resolve view with name

javax.servlet.ServletException: Could not resolve view with name 'home' in servlet with name 'springDispatcher'
	org.springframework.web.servlet.DispatcherServlet.render(DispatcherServlet.java:1200)
	org.springframework.web.servlet.DispatcherServlet.processDispatchResult(DispatcherServlet.java:1005)
	org.springframework.web.servlet.DispatcherServlet.doDispatch(DispatcherServlet.java:952)
	org.springframework.web.servlet.DispatcherServlet.doService(DispatcherServlet.java:870)
	org.springframework.web.servlet.FrameworkServlet.processRequest(FrameworkServlet.java:961)
	org.springframework.web.servlet.FrameworkServlet.doGet(FrameworkServlet.java:852)
	javax.servlet.http.HttpServlet.service(HttpServlet.java:734)
	org.springframework.web.servlet.FrameworkServlet.service(FrameworkServlet.java:837)
	javax.servlet.http.HttpServlet.service(HttpServlet.java:847)

Solution

If it is a Tiles framework integrated Application, verify the Tiles Definition is defined in tiles-defs.xml file.

If it is not a tiles application, verify the corresponding View is available in the Application or not.

Context initialization failed: org.springframework.beans.factory.BeanCreationException: Error creating bean with name ’tilesConfigurer’ defined in ServletContext resource


Below is the exception that I have received when I am integrating the tiles 3.0 framework with Spring 4.0 web mvc application. Using the solution below I have rectified the issue my self. Hope this is useful to all.

21:02:06,311 ERROR [org.springframework.web.servlet.DispatcherServlet] (ServerService Thread Pool — 74) Context initialization failed: org.springframework.beans.factory.BeanCreationException: Error creating bean with name ’tilesConfigurer’ defined in ServletContext resource [/config/spring-context.xml]: Invocation of init method failed; nested exception is java.lang.NoSuchMethodError: org.apache.tiles.access.TilesAccess.setContainer(Lorg/apache/tiles/request/ApplicationContext;Lorg/apache/tiles/TilesContainer;Ljava/lang/String;)V
at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.initializeBean(AbstractAutowireCapableBeanFactory.java:1553) [spring-beans-4.0.3.RELEASE.jar:4.0.3.RELEASE]
at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.doCreateBean(AbstractAutowireCapableBeanFactory.java:539) [spring-beans-4.0.3.RELEASE.jar:4.0.3.RELEASE]
at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBean(AbstractAutowireCapableBeanFactory.java:475) [spring-beans-4.0.3.RELEASE.jar:4.0.3.RELEASE]
at org.springframework.beans.factory.support.AbstractBeanFactory$1.getObject(AbstractBeanFactory.java:304) [spring-beans-4.0.3.RELEASE.jar:4.0.3.RELEASE]
at org.springframework.beans.factory.support.DefaultSingletonBeanRegistry.getSingleton(DefaultSingletonBeanRegistry.java:228) [spring-beans-4.0.3.RELEASE.jar:4.0.3.RELEASE]
at org.springframework.beans.factory.support.AbstractBeanFactory.doGetBean(AbstractBeanFactory.java:300) [spring-beans-4.0.3.RELEASE.jar:4.0.3.RELEASE]
at org.springframework.beans.factory.support.AbstractBeanFactory.getBean(AbstractBeanFactory.java:195) [spring-beans-4.0.3.RELEASE.jar:4.0.3.RELEASE]
at org.springframework.beans.factory.support.DefaultListableBeanFactory.preInstantiateSingletons(DefaultListableBeanFactory.java:703) [spring-beans-4.0.3.RELEASE.jar:4.0.3.RELEASE]
at org.springframework.context.support.AbstractApplicationContext.finishBeanFactoryInitialization(AbstractApplicationContext.java:760) [spring-context-4.0.3.RELEASE.jar:4.0.3.RELEASE]
at org.springframework.context.support.AbstractApplicationContext.refresh(AbstractApplicationContext.java:482) [spring-context-4.0.3.RELEASE.jar:4.0.3.RELEASE]
at org.springframework.web.servlet.FrameworkServlet.configureAndRefreshWebApplicationContext(FrameworkServlet.java:658) [spring-webmvc-4.0.3.RELEASE.jar:4.0.3.RELEASE]
at org.springframework.web.servlet.FrameworkServlet.createWebApplicationContext(FrameworkServlet.java:624) [spring-webmvc-4.0.3.RELEASE.jar:4.0.3.RELEASE]
at org.springframework.web.servlet.FrameworkServlet.createWebApplicationContext(FrameworkServlet.java:672) [spring-webmvc-4.0.3.RELEASE.jar:4.0.3.RELEASE]
at org.springframework.web.servlet.FrameworkServlet.initWebApplicationContext(FrameworkServlet.java:543) [spring-webmvc-4.0.3.RELEASE.jar:4.0.3.RELEASE]
at org.springframework.web.servlet.FrameworkServlet.initServletBean(FrameworkServlet.java:484) [spring-webmvc-4.0.3.RELEASE.jar:4.0.3.RELEASE]
at org.springframework.web.servlet.HttpServletBean.init(HttpServletBean.java:136) [spring-webmvc-4.0.3.RELEASE.jar:4.0.3.RELEASE]
at javax.servlet.GenericServlet.init(GenericServlet.java:242) [jboss-servlet-api_3.0_spec-1.0.2.Final-redhat-1.jar:1.0.2.Final-redhat-1]
at org.apache.catalina.core.StandardWrapper.loadServlet(StandardWrapper.java:1194) [jbossweb-7.2.2.Final-redhat-1.jar:7.2.2.Final-redhat-1]
at org.apache.catalina.core.StandardWrapper.load(StandardWrapper.java:1100) [jbossweb-7.2.2.Final-redhat-1.jar:7.2.2.Final-redhat-1]
at org.apache.catalina.core.StandardContext.loadOnStartup(StandardContext.java:3591) [jbossweb-7.2.2.Final-redhat-1.jar:7.2.2.Final-redhat-1]
at org.apache.catalina.core.StandardContext.start(StandardContext.java:3798) [jbossweb-7.2.2.Final-redhat-1.jar:7.2.2.Final-redhat-1]
at org.jboss.as.web.deployment.WebDeploymentService.doStart(WebDeploymentService.java:156) [jboss-as-web-7.3.0.Final-redhat-14.jar:7.3.0.Final-redhat-14]
at org.jboss.as.web.deployment.WebDeploymentService.access$000(WebDeploymentService.java:60) [jboss-as-web-7.3.0.Final-redhat-14.jar:7.3.0.Final-redhat-14]
at org.jboss.as.web.deployment.WebDeploymentService$1.run(WebDeploymentService.java:93) [jboss-as-web-7.3.0.Final-redhat-14.jar:7.3.0.Final-redhat-14]
at java.util.concurrent.Executors$RunnableAdapter.call(Executors.java:511) [rt.jar:1.8.0]
at java.util.concurrent.FutureTask.run(FutureTask.java:266) [rt.jar:1.8.0]
at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1142) [rt.jar:1.8.0]
at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:617) [rt.jar:1.8.0]
at java.lang.Thread.run(Thread.java:744) [rt.jar:1.8.0]
at org.jboss.threads.JBossThread.run(JBossThread.java:122)

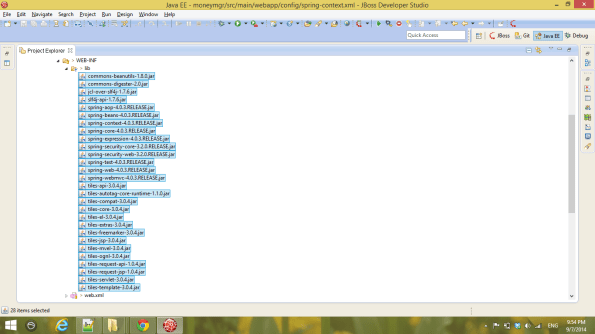

Caused by: java.lang.NoSuchMethodError: org.apache.tiles.access.TilesAccess.setContainer(Lorg/apache/tiles/request/ApplicationContext;Lorg/apache/tiles/TilesContainer;Ljava/lang/String;)V
at org.apache.tiles.startup.AbstractTilesInitializer.initialize(AbstractTilesInitializer.java:65) [tiles-core-3.0.4.jar:3.0.4]
at org.springframework.web.servlet.view.tiles3.TilesConfigurer.afterPropertiesSet(TilesConfigurer.java:270) [spring-webmvc-4.0.3.RELEASE.jar:4.0.3.RELEASE]
at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.invokeInitMethods(AbstractAutowireCapableBeanFactory.java:1612) [spring-beans-4.0.3.RELEASE.jar:4.0.3.RELEASE]
at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.initializeBean(AbstractAutowireCapableBeanFactory.java:1549) [spring-beans-4.0.3.RELEASE.jar:4.0.3.RELEASE]
… 29 more



Solution:

step 1: Check the spring tiles configuration: DTD should match with the version of jars added into application

<?xml version=”1.0″ encoding=”UTF-8″ ?>
<!DOCTYPE tiles-definitions PUBLIC
-//Apache Software Foundation//DTD Tiles Configuration 3.0//EN”
http://tiles.apache.org/dtds/tiles-config_3_0.dtd”&gt;

<tiles-definitions>
<definition name=”base.definition” template=”/jsp/layout.jsp”>
<put-attribute name=”title” value=”” />
<put-attribute name=”header” value=”/jsp/header.jsp” />
<put-attribute name=”menu” value=”/jsp/menu.jsp” />
<put-attribute name=”body” value=”” />
<put-attribute name=”footer” value=”/jsp/footer.jsp” />
</definition>

<definition name=”contact” extends=”base.definition”>
<put-attribute name=”title”
value=”Sample Spring MVC With Tiles Appliacation” />
<put-attribute name=”body” value=”/jsp/contact.jsp” />
</definition>

</tiles-definitions>

Step 2: Check the spring configuration files: DTD should match to the jars added into application

<?xml version=”1.0″ encoding=”UTF-8″?>
<beans xmlns=”http://www.springframework.org/schema/beans&#8221;
xmlns:xsi=”http://www.w3.org/2001/XMLSchema-instance&#8221; xmlns:mvc=”http://www.springframework.org/schema/mvc&#8221;
xmlns:context=”http://www.springframework.org/schema/context&#8221;
xsi:schemaLocation=”
http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-4.0.xsd
http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.0.xsd“>

<context:component-scan base-package=”in.javatutorials.spring.controller” />
<mvc:annotation-driven />
<bean id=”viewResolver” class=”org.springframework.web.servlet.view.UrlBasedViewResolver“>
<property name=”viewClass” value=”org.springframework.web.servlet.view.tiles3.TilesView“/>
</bean>

<bean id=”tilesConfigurer” class=“org.springframework.web.servlet.view.tiles3.TilesConfigurer“>
<property name=”definitions”>
<list>
<value>/config/tiles.xml</value>
</list>
</property>
</bean>

</beans>

Step 3: Check the jar versions with the above DTD versions:

Spring4 and Tiles 3 Integration Jars

List of View Resolvers in Spring MVC


In Spring MVC, view resolvers enable you to render models in a browser without tying you to a specific view technology like JSP, Velocity, XML…etc.

There are two interfaces that are important to the way Spring handles views are ViewResolver and View. The ViewResolver provides a mapping between view names and actual views. The View interface addresses the preparation of the request and hands the request over to one of the view technologies.

Below are the important view resolvers provided by spring framework:

  1. AbstractCachingViewResolver : Abstract view resolver that caches views. Often views need preparation before they can be used; extending this view resolver provides caching.
  2. XmlViewResolver : Implementation of ViewResolver that accepts a configuration file written in XML with the same DTD as Spring’s XML bean factories. The default configuration file is /WEB-INF/views.xml.
  3. ResourceBundleViewResolver : Implementation of ViewResolver that uses bean definitions in a ResourceBundle, specified by the bundle base name. Typically you define the bundle in a properties file, located in the classpath. The default file name is views.properties.
  4. UrlBasedViewResolver : Simple implementation of the ViewResolver interface that effects the direct resolution of logical view names to URLs, without an explicit mapping definition. This is appropriate if your logical names match the names of your view resources in a straightforward manner, without the need for arbitrary mappings.
  5. InternalResourceViewResolver :  Convenient subclass of UrlBasedViewResolver that supports InternalResourceView (in effect, Servlets and JSPs) and subclasses such as JstlView and TilesView. You can specify the view class for all views generated by this resolver by using setViewClass(..).
  6. VelocityViewResolver/FreeMarkerViewResolver : Convenient subclass of UrlBasedViewResolver that supports VelocityView (in effect, Velocity templates) or FreeMarkerView ,respectively, and custom subclasses of them.
  7. ContentNegotiatingViewResolver : Implementation of the ViewResolver interface that resolves a view based on the request file name or Accept header.

Other Useful Links:

Basic Spring MVC Application

Spring MVC with Tiles framework sample application

Basic Spring MVC Application


This post explains how to create spring based web application.

Folder Structure:

Typical folder structure of the spring web application contains as below.

Folder Structure

web.xml:

Below is the web.xml file which contains the spring configuration. DispatcherServlet is controller of the spring mvc application, all the requests which coming to the application will be passed through it.  DispatcherServlet loads the spring-context.xml file during server start up and keeps the all the configurations in servlet context. Action path configured for this applications is *.html.

<?xml version=”1.0″ encoding=”UTF-8″?>
<web-app xmlns:xsi=”http://www.w3.org/2001/XMLSchema-instance&#8221;
xmlns=”http://java.sun.com/xml/ns/javaee&#8221;
xmlns:web=”http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd&#8221;
xsi:schemaLocation=”http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd&#8221;
id=”WebApp_ID” version=”2.5″>

<display-name>Spring Hello World</display-name>

<welcome-file-list>
<welcome-file>/</welcome-file>
<welcome-file>index.jsp</welcome-file>
</welcome-file-list>

<servlet>
<servlet-name>springDispatcher</servlet-name>
<servlet-class>
org.springframework.web.servlet.DispatcherServlet
</servlet-class>
<init-param>
<param-name>contextConfigLocation</param-name>
<param-value>/config/spring-context.xml</param-value>
</init-param>
<load-on-startup>1</load-on-startup>
</servlet>
<servlet-mapping>
<servlet-name>springDispatcher</servlet-name>
<url-pattern>*.html</url-pattern>
</servlet-mapping>
</web-app>

index.jsp:

index.jsp file configured in web.xml as a welcome file, so this file will be loaded when user hit the http://localhost:8080/SpringMVC/ url in the browser.

<jsp:forward page=”sayhello.html”></jsp:forward>

HelloWorldController.java:

When ever index.jsp loaded into the browser, it will forward the request to sayhello.html. This sayhello request is mapped to sayHello() method in HelloWorldController class. So, sayHello() method will be executed and it will return the ‘hello’ string after completion of method execution.

package in.javatutorials.spring.controller;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;

/**
*
* @author Javatutorials
*
*/
@Controller
public class HelloWorldController {

/**
* Controls the ‘sayhello’ and return to hello.jsp
* @return
*/
@RequestMapping(value = “/sayhello”, method = RequestMethod.GET)
public String sayHello() {

System.out.println(“Sample Spring Application”);

return “hello”;
}

}

spring-context.xml:

Package of HelloWorldController  class is configured as a controller package in the spring-context file as mentioned below. This sample application is configured with the InternalResourceViewResolver, when ever sayHello() method returns the hello string, request will be redirected to hello.jsp based upon the InternalResourceViewResolver configuration as mentioned in the below file.

<?xml version=”1.0″ encoding=”UTF-8″?>
<beans xmlns=”http://www.springframework.org/schema/beans&#8221;
xmlns:xsi=”http://www.w3.org/2001/XMLSchema-instance&#8221; xmlns:mvc=”http://www.springframework.org/schema/mvc&#8221;
xmlns:context=”http://www.springframework.org/schema/context&#8221;
xsi:schemaLocation=”
http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-3.0.xsd
http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-3.0.xsd”&gt;

<context:component-scan base-package=”in.javatutorials.spring.controller” />
<mvc:annotation-driven />

<bean
class=”org.springframework.web.servlet.view.InternalResourceViewResolver”>
<property name=”prefix” value=”/jsp/” />
<property name=”suffix” value=”.jsp” />
</bean>

</beans>

hello.jsp:

Finally ‘Hi, This is Sample Spring MVC Application’ message will be shown to the user as it is mentioned in the below jsp.

<%@ page language=”java” contentType=”text/html; charset=ISO-8859-1″
pageEncoding=”ISO-8859-1″%>
<!DOCTYPE html PUBLIC “-//W3C//DTD HTML 4.01 Transitional//EN” “http://www.w3.org/TR/html4/loose.dtd”&gt;
<html>
<head>
<meta http-equiv=”Content-Type” content=”text/html; charset=ISO-8859-1″>
<title>Sample Spring MVC Application</title>
</head>
<body>Hi, This is Sample Spring MVC Application
</body>
</html>

Access the application in Browser:

http://localhost:8080/SpringMVC/

Application Browser

Please click on the below link to download the complete application : Click here

Other Useful links:

Spring MVC with Tiles framework sample application

differences between DispatchAction and LookupDispatchAction in Struts Framework

Create a Java web service using top down approch

Example programs for SOAP webservice client

Spring MVC with Tiles framework sample application


Below post talks about the Spring MVC integration with the tiles framework.

You can build developer friendly and user friendly web applications using the tiles framework.

Basic Folder structure of the application:

Typical folder structure of the Spring MVC application has mentioned below:

Spring MVC Application folder structure
Spring MVC Application folder structure



Web.xml:

Below is the web.xml file which contains the spring configuration. DispatcherServlet is controller of the spring mvc application, all the requests which coming to the application will be passed through it. DispatcherServlet loads the spring-context.xml file during server start up and keeps the all the configurations in servlet context. Action path configured for this applications is *.html.

<?xml version=”1.0″ encoding=”UTF-8″?>
<web-app xmlns:xsi=”http://www.w3.org/2001/XMLSchema-instance&#8221;
xmlns=”http://java.sun.com/xml/ns/javaee&#8221;
xmlns:web=”http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd&#8221;
xsi:schemaLocation=”http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd&#8221;
id=”WebApp_ID” version=”2.5″>
<display-name>Spring Hello World</display-name>
<welcome-file-list>
<welcome-file>/</welcome-file>
<welcome-file>index.jsp</welcome-file>
</welcome-file-list>

<servlet>
<servlet-name>springDispatcher</servlet-name>
<servlet-class>
org.springframework.web.servlet.DispatcherServlet
</servlet-class>
<init-param>
<param-name>contextConfigLocation</param-name>
<param-value>/config/spring-context.xml</param-value>
</init-param>
<load-on-startup>1</load-on-startup>
</servlet>
<servlet-mapping>
<servlet-name>springDispatcher</servlet-name>
<url-pattern>*.html</url-pattern>
</servlet-mapping>
</web-app>

index.jsp:

index.jsp file configured in web.xml as a welcome file, so this file will be loaded when user hit the http://localhost:8080/SpringMVC/ url in the browser.

<jsp:forward page=”contacts.html”></jsp:forward>

HelloWorldController .java:

When ever index.jsp loaded into the browser, it will forward the request to contacts.html. This contacts request is mapped to contollContacts() method in HelloWorldController class. So, contollContacts() method will be executed and it will return the ‘contact’ string after completion of method execution.

package in.javatutorials.spring.controller;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;

/**
*
* @author Javatutorials
*
*/
@Controller
public class HelloWorldController {

/**
* Controls the ‘contacts’ and return to respective layout page
* @return
*/
@RequestMapping(value = “/contacts”, method = RequestMethod.GET)
public String contollContacts() {

String message = “Hi, You are in Controller !!!”;
System.out.println(message);

return “contact”;
}

}



spring-context.xml:

As the Tiles framework has been configured in the spring-context file as below with UrlBasedViewResolver, whenever contact will be returned by contollContacts() methods, request will be reached to tiles.xml and contact tile configuration will be loaded.

<?xml version=”1.0″ encoding=”UTF-8″?>
<beans xmlns=”http://www.springframework.org/schema/beans&#8221;
xmlns:xsi=”http://www.w3.org/2001/XMLSchema-instance&#8221; xmlns:mvc=”http://www.springframework.org/schema/mvc&#8221;
xmlns:context=”http://www.springframework.org/schema/context&#8221;
xsi:schemaLocation=”
http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-3.0.xsd
http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-3.0.xsd”&gt;

<context:component-scan base-package=”in.javatutorials.spring.controller” />
<mvc:annotation-driven />

<bean id=”viewResolver”
class=”org.springframework.web.servlet.view.UrlBasedViewResolver”>
<property name=”viewClass”>
<value>
org.springframework.web.servlet.view.tiles2.TilesView
</value>
</property>
</bean>
<bean id=”tilesConfigurer”
class=”org.springframework.web.servlet.view.tiles2.TilesConfigurer”>
<property name=”definitions”>
<list>
<value>/config/tiles.xml</value>
</list>
</property>
</bean>

</beans>



tiles.xml:

Below will be the tiles configuration made for our sample application. contact tiles definition is extending to base.definition and base definition will be using layout.jsp as the layout file for our application.

<?xml version=”1.0″ encoding=”UTF-8″ ?>
<!DOCTYPE tiles-definitions PUBLIC
“-//Apache Software Foundation//DTD Tiles Configuration 2.0//EN”
http://tiles.apache.org/dtds/tiles-config_2_0.dtd”&gt;

<tiles-definitions>
<definition name=”base.definition” template=”/jsp/layout.jsp”>
<put-attribute name=”title” value=”” />
<put-attribute name=”header” value=”/jsp/header.jsp” />
<put-attribute name=”menu” value=”/jsp/menu.jsp” />
<put-attribute name=”body” value=”” />
<put-attribute name=”footer” value=”/jsp/footer.jsp” />
</definition>

<definition name=”contact” extends=”base.definition”>
<put-attribute name=”title”
value=”Sample Spring MVC With Tiles Appliacation” />
<put-attribute name=”body” value=”/jsp/contact.jsp” />
</definition>

</tiles-definitions>

layout.jsp:

This layout.jsp is divided the complete application page as header, menu, body, footer. So, once the layout.jsp called, all the other jsps will be included as per the configuration mentioned in the tiles.xml file.

<%@ taglib uri=”http://tiles.apache.org/tags-tiles&#8221; prefix=”tiles”%>
<!DOCTYPE HTML PUBLIC “-//W3C//DTD HTML 4.01 Transitional//EN”
http://www.w3.org/TR/html4/loose.dtd”&gt;
<html>
<head>
<meta http-equiv=”Content-Type” content=”text/html; charset=UTF-8″>
<title><tiles:insertAttribute name=”title” ignore=”true” /></title>
</head>
<body>
<table border=”1″ cellpadding=”2″ cellspacing=”2″ align=”center”>
<tr>
<td height=”30″ colspan=”2″><tiles:insertAttribute name=”header” />
</td>
</tr>
<tr>
<td height=”250″><tiles:insertAttribute name=”menu” /></td>
<td width=”350″><tiles:insertAttribute name=”body” /></td>
</tr>
<tr>
<td height=”30″ colspan=”2″><tiles:insertAttribute name=”footer” />
</td>
</tr>
</table>
</body>
</html>



header.jsp:

<h1>Header</h1>



menu.jsp:

<p>Menu</p>



footer.jsp:

<h1>Footer page</h1>



contact.jsp:

<%@taglib uri=”http://www.springframework.org/tags/form&#8221; prefix=”form”%>
<html>
<head>
<title>Sample Spring MVC With Tiles Appliacation</title>
</head>
<body>
<h2>Sample Spring MVC With Tiles Appliacation</h2>
<%
System.out.println(“Contact jsp”);
%>

</body>
</html>



Final Output of the Application:

When ever user hits the below url in the browser, application will be loaded as mentioned in the below screenshot.

http://localhost:8080/SpringMVC/

Sample Spring MVC With Tiles framework application
Sample Spring MVC With Tiles framework application



To download complete application , please click on the link below : Click here

Other Useful links:

Basic Spring MVC Application
