Create a Java web service using top down approch

February 11, 2013February 11, 2013Mallik1 Comment

In the bottom up approach, we will write the java class and generates the WSDL file and other dependent components. The same will be deployed into the web containers.

In Top down approach, Architects will write the WSDL file based on the requirements. Developer need to make the corresponding service implementation using the WSDL provided. This post will explain how to create a service using the WSDL file.

Step 1: Create a dynamic or java project as mentioned here

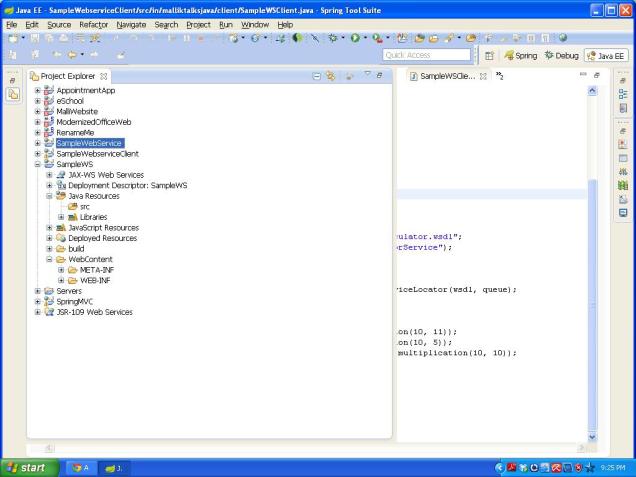

Here, I have created a sample web dynamic project with the name SampleWS as given below.

Step 2: generate the service using top down approach

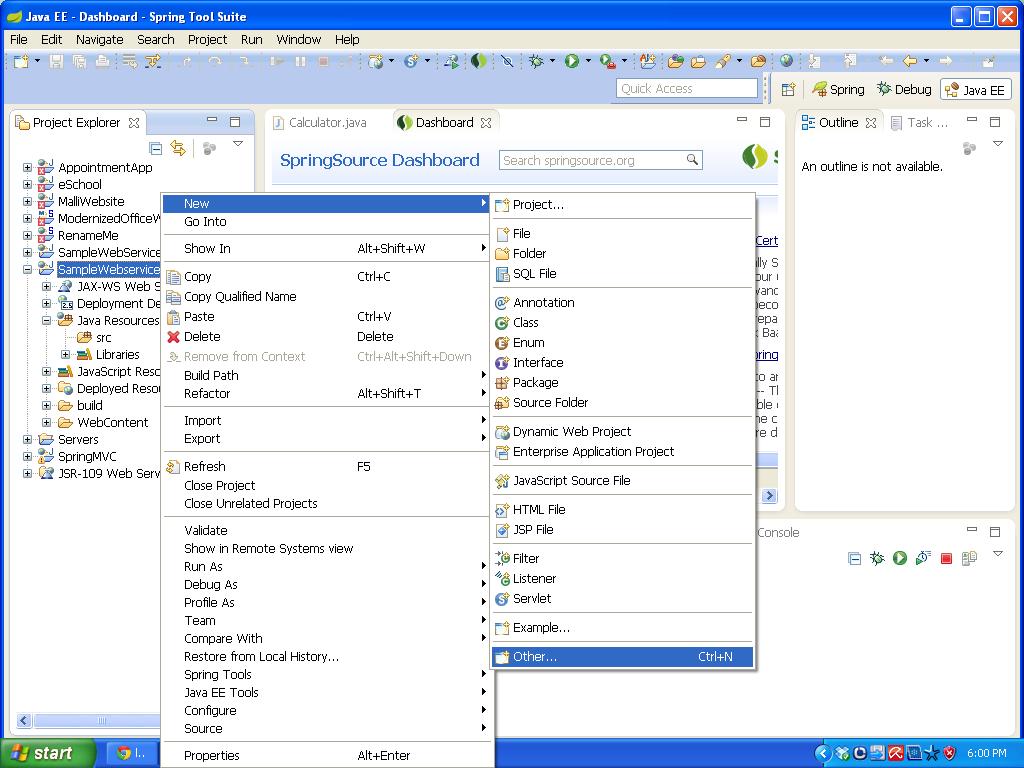

Right click on the SamplWS project name -> New -> Other

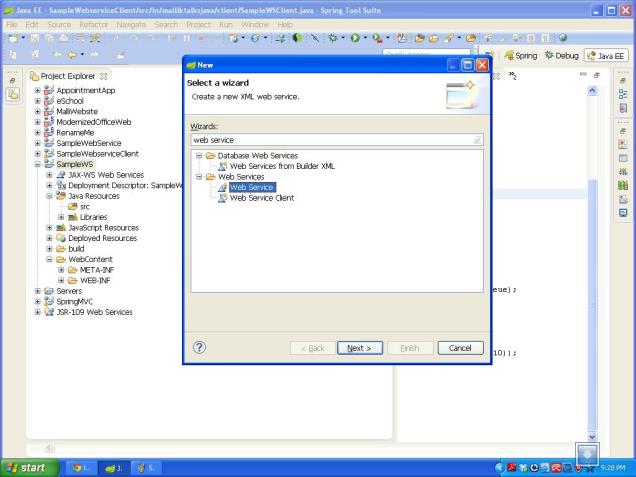

Select the Web Service from the wizard as below and click on Finish button.

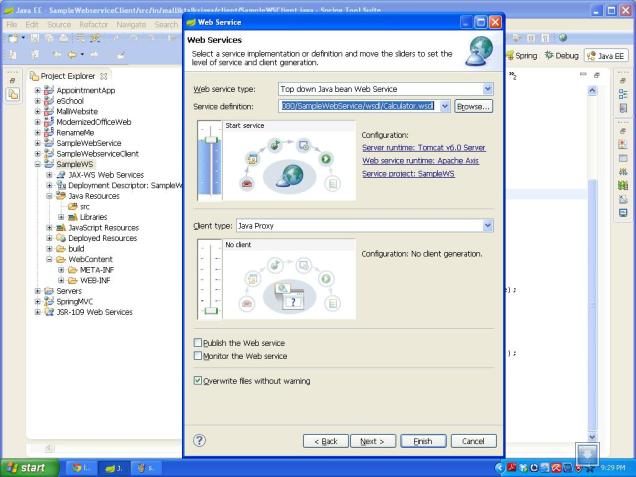

Select the Web service type as ‘Top down Java bean Web service’ and provide the WSDL url in the Service definition drop down and click on Finish button.

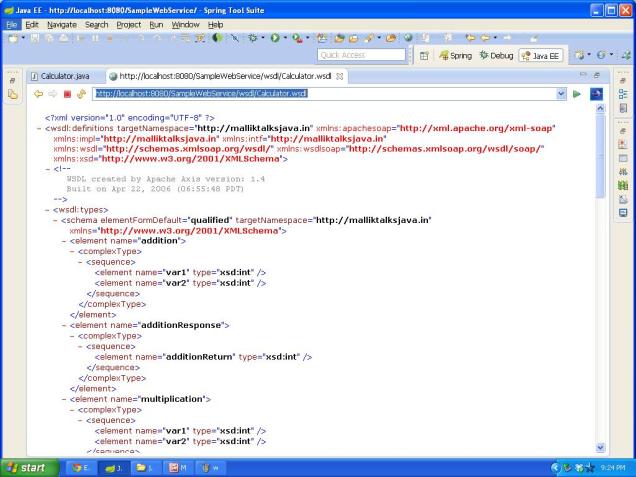

Sample WSDL URL is: http://localhost:8080/SampleWebService/wsdl/Calculator.wsdl

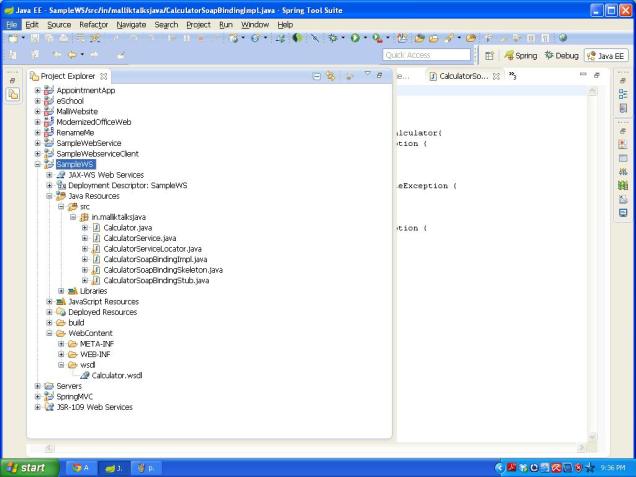

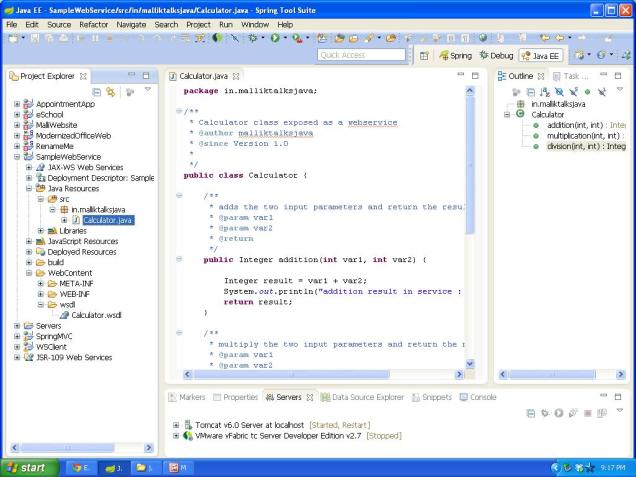

Your Web service is ready with the Java bean methods as below and the Final folder structure looks like below:

Write the business logic into the Service class as given below:

Generated class:

/**
* CalculatorSoapBindingImpl.java
*
* This file was auto-generated from WSDL
* by the Apache Axis 1.4 Apr 22, 2006 (06:55:48 PDT) WSDL2Java emitter.
*/

package in.malliktalksjava;

public class CalculatorSoapBindingImpl implements in.malliktalksjava.Calculator{
public int addition(int var1, int var2) throws java.rmi.RemoteException {
return -3;
}

public int multiplication(int var1, int var2) throws java.rmi.RemoteException {
return -3;
}

public int division(int var1, int var2) throws java.rmi.RemoteException {
return -3;
}

}

Implemented class:

/**
* CalculatorSoapBindingImpl.java
*
* This file was auto-generated from WSDL
* by the Apache Axis 1.4 Apr 22, 2006 (06:55:48 PDT) WSDL2Java emitter.
*/

package in.malliktalksjava;

public class CalculatorSoapBindingImpl implements in.malliktalksjava.Calculator{
public int addition(int var1, int var2) throws java.rmi.RemoteException {
return var1+var2;
}

public int multiplication(int var1, int var2) throws java.rmi.RemoteException {
return var1*var2;
}

public int division(int var1, int var2) throws java.rmi.RemoteException {
return var1/var2;
}

}

Deploy the application into server and use the below url as a WSDL for this to have the client.

http://localhost:8080/SampleWebService/wsdl/Calculator.wsdl

Other Useful Links:

Click here to know more about webservices

Click here to know more about RESTfull web services.

Click here for Web services Question and Answers.

Click here to know how to write web service client suing java.

Write a Client for web service

February 9, 2013Mallik4 Comments

Below steps explains how to write a web service client in java using STS IDE.

Step 1: Create a Java project using the steps mentioned here.

Step 2: Generate the stubs for the Java web service using below steps

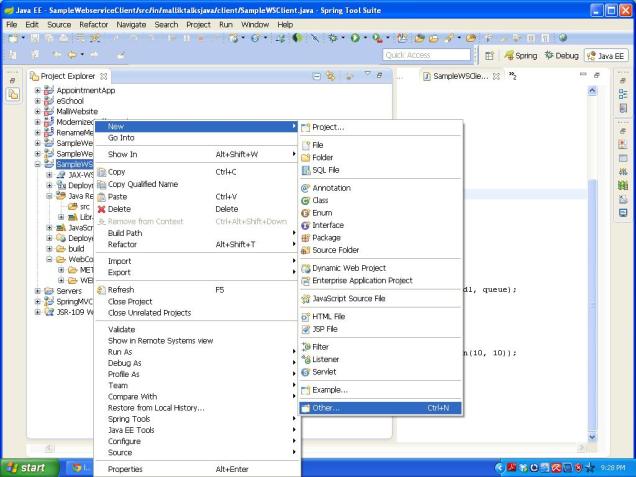

Mouse Right click on Client project and select New -> Other

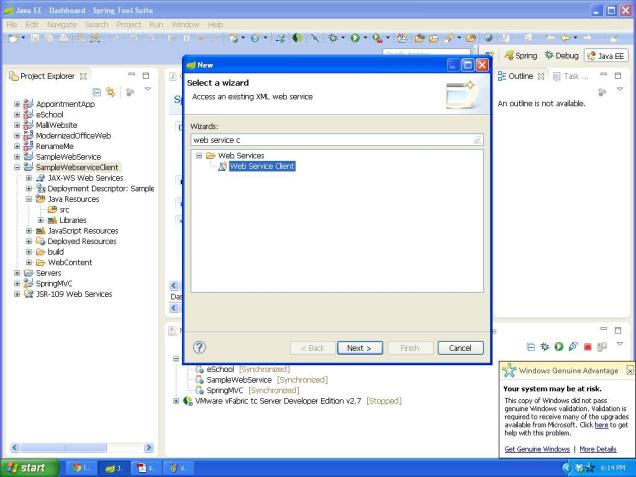

Select the Web service client from the wizard

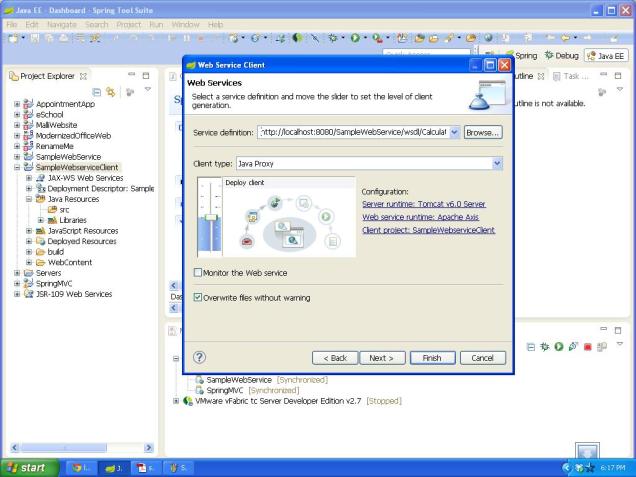

Provide the service WSDL url in the Service Definition text box and click on finish button.

Web service client stubs will be generated into the package and final folder structure looks below.

Write the Client class using the stubs and test the client project.

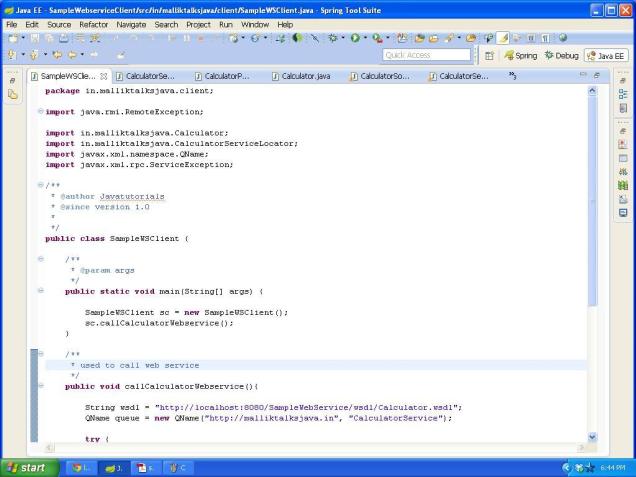

Use the below sample code to write the client:

package in.malliktalksjava.client;

import java.rmi.RemoteException;

import in.malliktalksjava.Calculator;
import in.malliktalksjava.CalculatorServiceLocator;
import javax.xml.namespace.QName;
import javax.xml.rpc.ServiceException;

/**
* @author Javatutorials
* @since version 1.0
*
*/
public class SampleWSClient {

/**
* @param args
*/
public static void main(String[] args) {

SampleWSClient sc = new SampleWSClient();
sc.callCalculatorWebservice();
}

/**
* used to call web service
*/
public void callCalculatorWebservice(){

String wsdl = “http://localhost:8080/SampleWebService/wsdl/Calculator.wsdl”;
QName queue = new QName(“http://malliktalksjava.in”, “CalculatorService”);

try {
//create the servicelocator object
CalculatorServiceLocator calServiceLoc = new CalculatorServiceLocator(wsdl, queue);
//create the service object
Calculator calculator = calServiceLoc.getCalculator();
//call the service methods
System.out.println(“addition result : “+calculator.addition(10, 11));
System.out.println(“division result : “+calculator.division(10, 5));
System.out.println(“multiplication result : “+calculator.multiplication(10, 10));
} catch (ServiceException e) {
e.printStackTrace();
} catch (RemoteException e) {
e.printStackTrace();
}
}
}

With this your client application is ready to use.

Other Useful links:

Click here to know how to create the web service project.

Click here to know the difference between SOAP and RESTfull web services.

Create a java webservice using STS

February 3, 2013February 9, 2013Mallik4 Comments

Below steps explains the how to create a web-service in java in bottom-up approach using the STS(Spring tool suite) IDE. In the bottom-up approach, first we will create a template class, using the template class we will generate the WSDL and deploy the service in servers. Follow the below steps to create a webservice.

Step 1: Create a new java project using the steps mentioned here

Step 2 : Create a template Java class as service

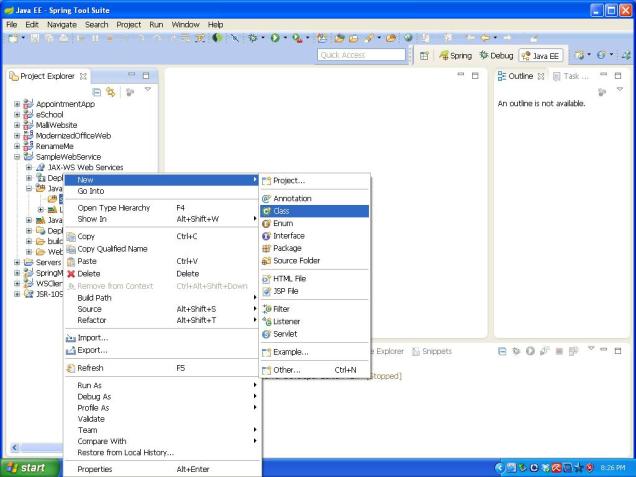

Create a Java class in src folder of the in.javatutorials package as below

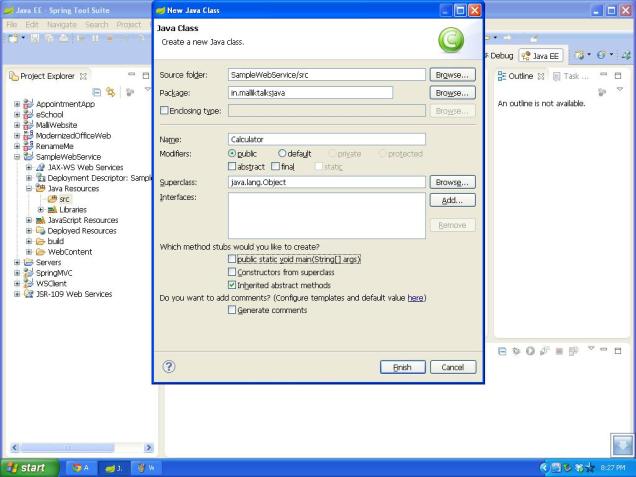

Provide the package name and class name into respective fields and click on finish button.

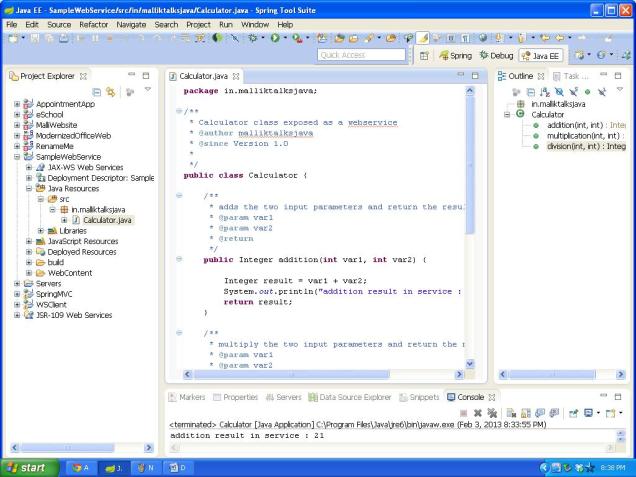

Implement the Java methods as give below:

Use the below source code to write the class:

package in.malliktalksjava;

/**
* Calculator class exposed as a webservice
* @author malliktalksjava
* @since Version 1.0
*
*/
public class Calculator {

/**
* adds the two input parameters and return the result
* @param var1
* @param var2
* @return
*/
public Integer addition(int var1, int var2) {

Integer result = var1 + var2;
System.out.println(“addition result in service : ” + result);
return result;
}

/**
* multiply the two input parameters and return the result
* @param var1
* @param var2
* @return
*/
public Integer multiplication(int var1, int var2) {

Integer result = var1 * var2;
System.out.println(“multiplication result in service : ” + result);
return result;
}

/**
* divide the two input parameters and return the result
* @param var1
* @param var2
* @return
*/
public Integer division(int var1, int var2) {

Integer result = var1 / var2;
System.out.println(“division result in service : ” + result);
return result;
}

}

Step 3: make the java class as web service

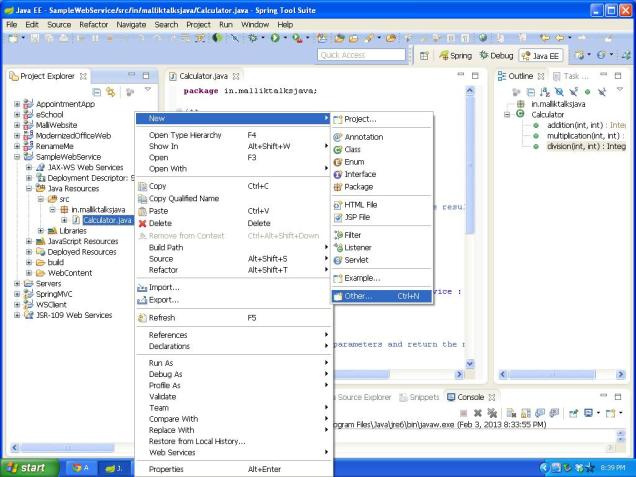

Select the Java class as below

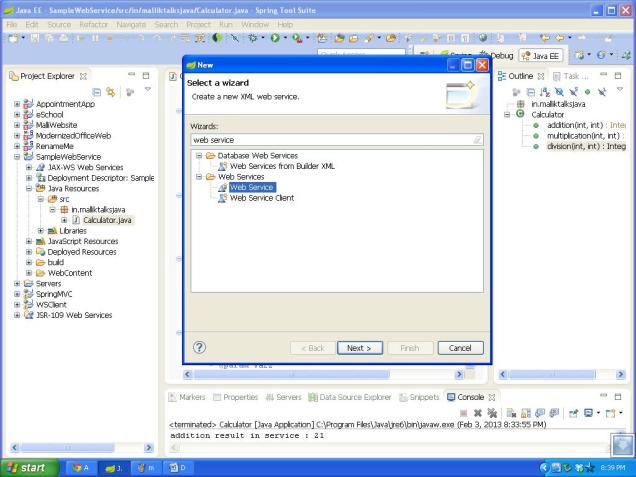

Choose Web Service from the and click on Next button

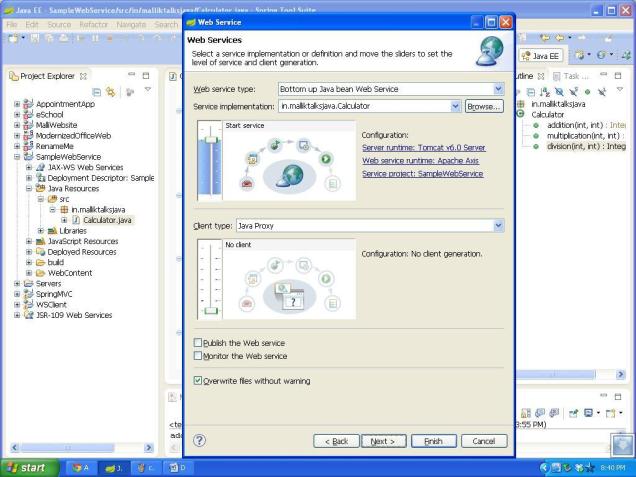

Select the ‘Bottom up Java bean Web Service’ from the Web service type and service implementation class as mentioned in the below picture and click on Next button.

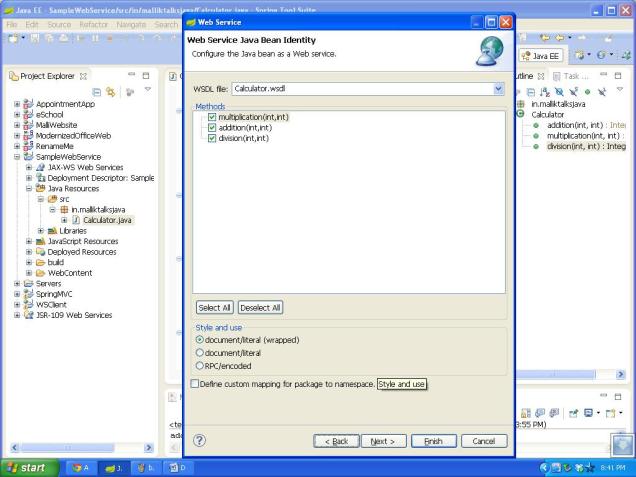

Select the service methods from the menu and click on Finish button. The Service implementation style used is document/literal as shown in below picture.
